Plate Anchor

The load range of this product is from 14KN to 100KN. It is mainly used for demoulding, hoisting thin plates, concrete pipes etc. The concrete strength of all hoisting components must reach 20 MPa. This product must be arranged with reinforcing bars crosswise according to the reinforcement length of concrete.

Online inquiry

Previous Next

Detailed content Specification parameter Product packaging

The load range of this product is from 14KN to 100KN. It is mainly used for demoulding, hoisting thin plates, concrete pipes etc. The concrete strength of all hoisting components must reach 20 MPa.

This product must be arranged with reinforcing bars crosswise according to the reinforcement length of concrete.

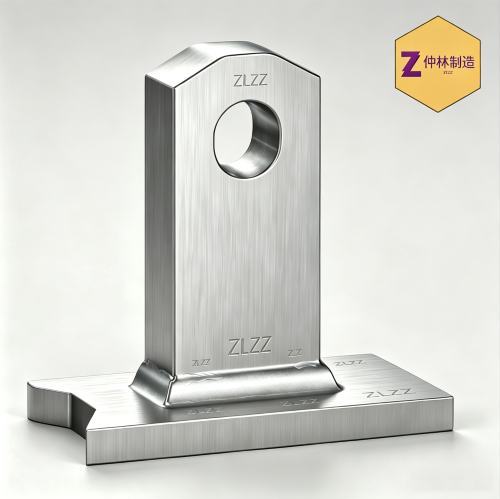

锻板-5-1.1灰底logo底纹压缩Plate Anchor.png

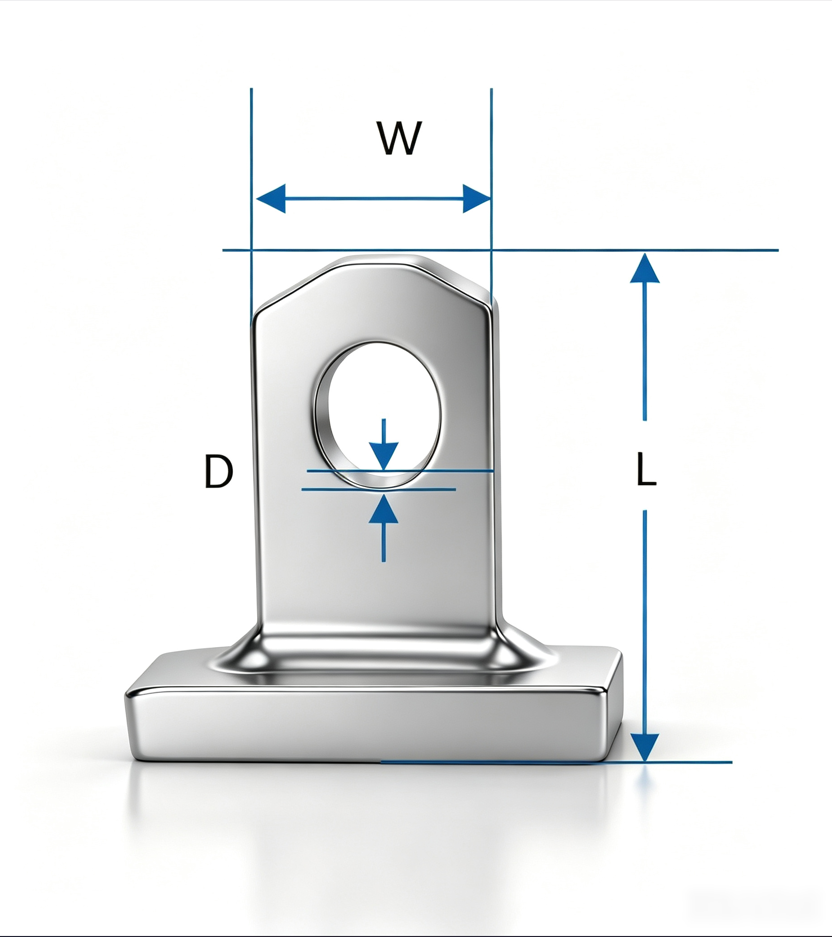

锻板-5-Plate Anchor-尺寸示意图-3D.png

Ton	Item ID	Ring Clutch System	L	D	W
2T	ZLZZ-МР-2.5-55	2T-3Т	2-1/4”	3/8”	1-1/4”
4T	ZLZZ-МР-5-76	4T-6T	3”	5/8”	1-1/2”
4T	ZLZZ-МР-5-90	4T-6T	3-1/2”	5/8”	1-1/2”
4T	ZLZZ-МР-5-110	4T-6T	4-3/8”	5/8”	1-1/2”
8T	ZLZZ-МР-10-158	8T-12T	6-1/4”	3/4”	2-1/2”
8T	ZLZZ-МР-10-180	8T-12T	7-1/8”	3/4”	2-1/2”
