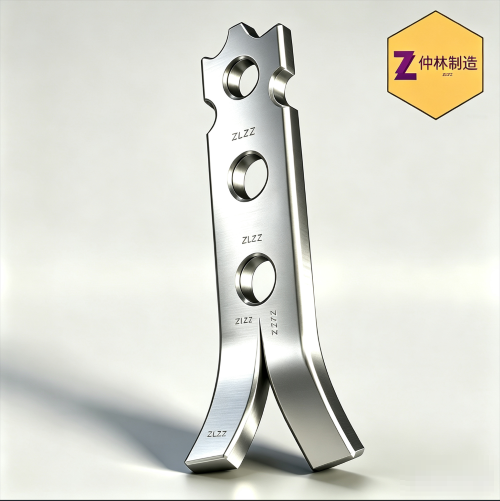

The load range of this type of anchor is from 14KN to 220KN, which is a relatively favorable lifting method for thin-walled and large-sized prefabricated components. This type of plate is designed with an additional reinforcement added together.
Ton
Item ID
L
W
D
S
Weight (LBS)
1
ZLZZ-MS-1-120
4-3/4”
1-1/4”
3/16”
2-3/4”
0.33
2
ZLZZ-MS-2-140
5-1/2”
3/8”
0.75
4
ZLZZ-MS-4-160
6-1/4”
1-1/2”
5/8”
3-3/8”
1.59
8
ZLZZ-MS-8-280
11”
2-1/2”
3/4”
4-1/2”
5.50
22
ZLZZ-MS-22-500
19-5/8”
3-1/2”
1-3/16”
21.60
