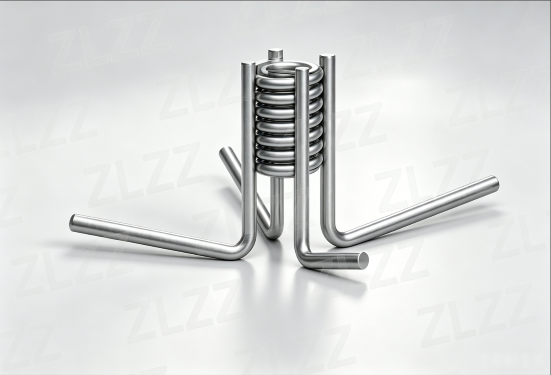

LEG COIL INSERT

Specially designed for lifting and handling thin prefabricated components, with a bottom clearance of 3/4 inch to collect the rated load (As shown in the right figure). Thin Slab Coil Insert is designed for lifting and handling thin precast. Inserts should have 3/4” minimum clearance off the bottom face to obtain the rated loads.

Online inquiry

Previous Next

Detailed content Specification parameter Product packaging

Specially designed for lifting and handling thin prefabricated components, with a bottom clearance of 3/4 inch to collect the rated load (As shown in the right figure).

Thin Slab Coil Insert is designed for lifting and handling thin precast. Inserts should have 3/4” minimum clearance off the bottom face to obtain the rated loads.

3-3D底纹压缩-LEG COIL INSERT.png

Item ID	Spring Size	Spring Circles	L	D	Load Class
ZLZZ-LCI-3480	3/4"	7	7-1/8"	0.327”	≥80.1KN
ZLZZ-LCI-10111	1"	7	9-3/8"	0.327”	≥111.2KN
